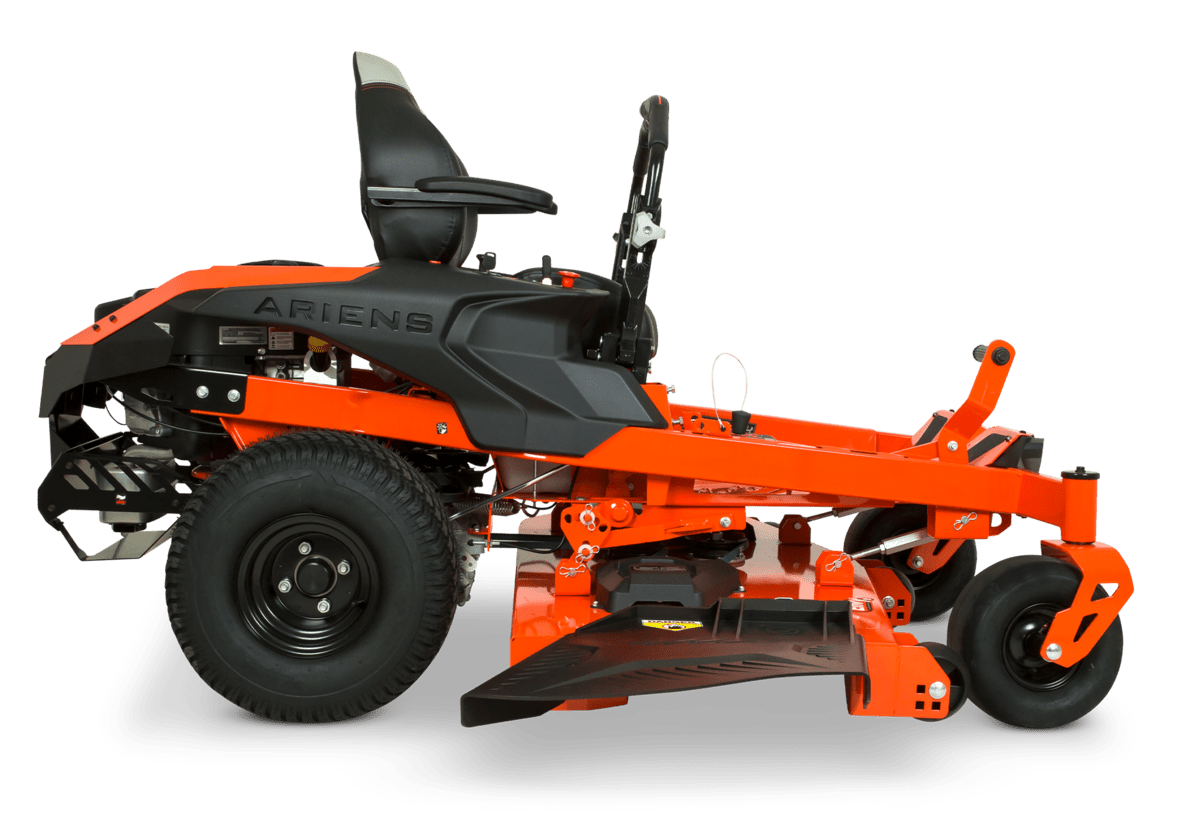

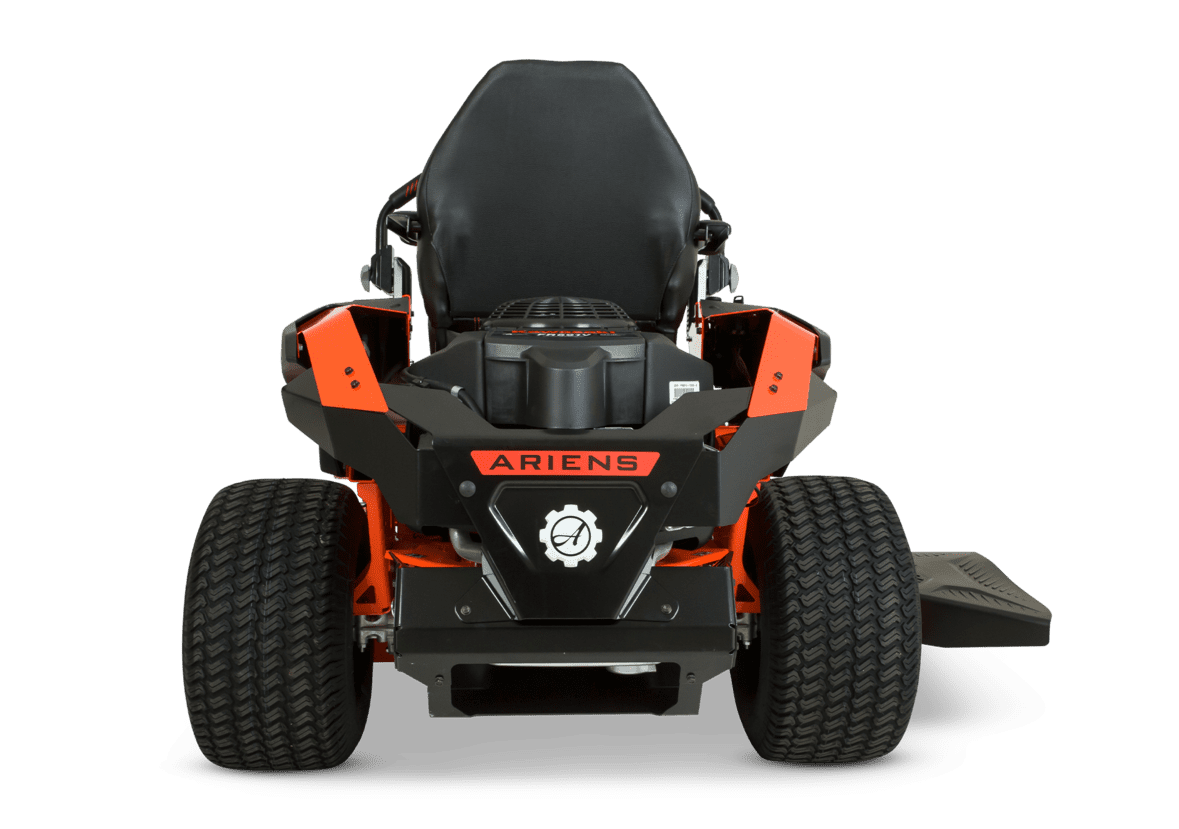

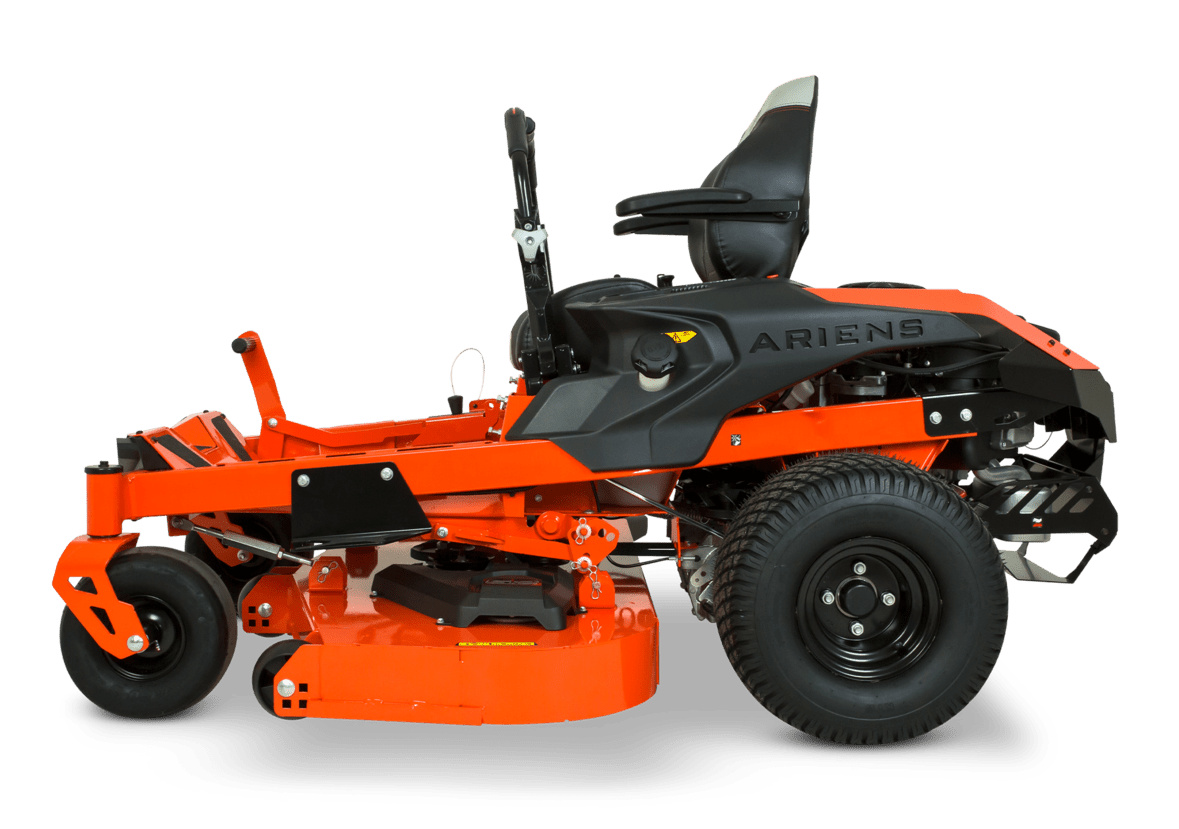

Ariens Ikon 52″ Zero-Turn Mower

Name: Ariens Ikon 52" Zero-Turn Mower
SKU: AAU918005
Availability: InStock

$10,399.00 Price in AUS$ & includes GST

Built to take whatever your yard dishes out.

Warranty Information

Domestic Warranty 3 Years or 300 Hours Domestic Warranty

Commercial Warranty 3 Years or 300 Hours Commercial Warranty

Hire/Rental Warranty 90 Day Hire / Rental Warranty

1 in stock (can be backordered)

SKU: AAU918005 Category: Ariens Zero Turn Ride On Range

Description

Description

Features

A premium quality Kawasaki FR691 V-twin engine featuring an internally vented carburettor and cast-iron cylinder liners.

52″ (1320 mm) Cutting width.

13 cutting positions, ranging from 38.1 mm – 114.3 mm.

Toolless quick adjust control arms.

Dual high intensity LED lights

4 Point deck lift.

Toolless flip up floor plate with accessory tray.

This fully welded tubular frame is a professional-grade backbone tough enough to get the job done in your backyard.

Our 11-gauge, 4.5-inch-deep fabricated deck features an optimized airflow design to produce best-in-class cut quality and discharge performance.

Miscellaneous

Blade(s) 3

Dimension Specs

Dry Weight 309.8 kg

Height 1193 mm

Width 1412 mm With chute up

Overall Length 1892 mm

Zero Turn Mower Specs

Ground Speed – Forward 0-11.2 km/ph

Brakes Control arm integrated

Caster Tyres 11x 6 x 5 smooth tread

Tyres – Drive 20 x 10-8 Tuff tread

Seat 22″ Highback with armrests

Construction Frame 1.50″ x 3″ steel tubular frame welded

ROPS ROPS not supplied with unit

Controls Hand-operated choke, throttle, ignition switch, electric mower clutch, Integrated parking brake

Cup Holder Yes

Deck System Fabricated ENVY™ deck

Deck Lift Foot operated

Deck Construction Fabricated 11-Gauge

Blade Tip Speed 18000 FPM

Blade Drive V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life

Spindles Forged Aluminium housing, forged steel shaft with sealed ball bearings

Drive System Hydro-Gear® EZT® Transaxles

Discharge Chute High density, rubberised

Steering Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse and turns are all controlled with hand-operated controls

Engine and Fuel Specs

Engine Kawasaki® FR651V V-Twin

Engine (cc) 726 cc

Horsepower 21.5 hp

Cooling Air cooled flywheel fan

Fuel Unleaded fuel – maximum of 10% ethanol in fuel (see engine manufacturers specifications)

Fuel Filter Replaceable, automotive-type

Oil Filter Spin-on engine oil filter / Total oil capacity 2.0 litres with filter

Air Filter Single-stage cartridge air filter

Fuel Capacity 13.2 L

Governor Mechanical

Safety Features

Safety Features Operator presence system connected to clutch, seat, and park brakes

Mowing Deck Specs

Kit – Mulch Available Accessory

Hydrostatic Drive System Specs

Hydrostatic Drive System Dual hydrostatic

Drive Cooling Transmission mounted fans

Pumps Hydro Gear EZT

Cutting Dimensions

Cutting Widths 52″ (1320 mm) cut side discharge

Cutting Height(s) 13 positions, 38 mm – 114 mm
